V7 Videoseven - the right decision!
For V7 Videoseven the customer comes first. Therefore only tried and well tested technologies are integrated in our products. The large product range provides displays for every requirement - from entry-level to high-end!

V7 Videoseven also provides comprehensive after-sales support for its customers. Depending on the model you chose, V7 Videoseven products are delivered with up to 3 years of on-site service throughout Europe.

All V7 Videoseven display products are fitted with high quality components. Our on-site engineers carry out in-depth testing and checking to guarantee that V7 Videoseven products are of a consistently high quality. Numerous press awards prove this.

Panel Size 20.1� (~ 510 mm)
Viewable Size 4:3 (~ 408 x 306 mm)
Panel Specification CMO Panel, TN
Recommended Resolution 1400 x 1050
Pixel Pitch 0.2916 mm
Colours max. 16.2 Mio
Brightness typ. 300 cd/m2
Contrast Ratio typ. 600:1
Viewing Angle H/V 150°/130°
Response Time typ. 8 (2/6) ms
Features Speakers (2x 2,5 W), Kensington® Security
Port, internal power supply

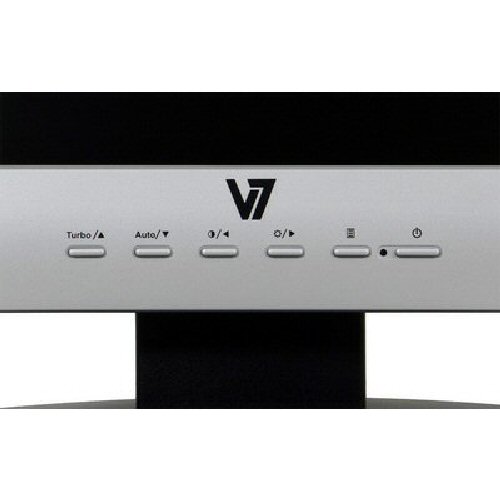

Adjustment Bightness, Contrast, Auto-Adjust, Clock,
Phase, H/V-Position, Sharpness, Colour
Control, OSD Position, Audio Control,
Language, Recall etc.
Frequency at Resolution 640 x 480 @ 75Hz, 800 x 600 @ 75Hz,
1024 x 768 @ 75Hz, 1280 x 1024 @ 75Hz, 1440 x 1050 @ 60hz
Horizontal Frequency 30 - 82 kHz
Vertical Frequency 56 - 76 Hz
Video Bandwidth 140 Mhz
Input Signal RGB Analog
Input Terminal 15pin D-Sub
Plug & Play DDC2B
Power Management VESA DPMS, ENERGY STAR
Power Consumption On/Off 55/1 Watt max.
Power Requirements AC 100 - 240V, 50/60 Hz
Dimensions WxHxD
with stand 464 x 437 x 232 mm
without stand 467 x 385 x 60 mm
packaging 525 x 490 x 140 mm
Weight with stand 5.3 kg
incl. packaging 6.43 kg

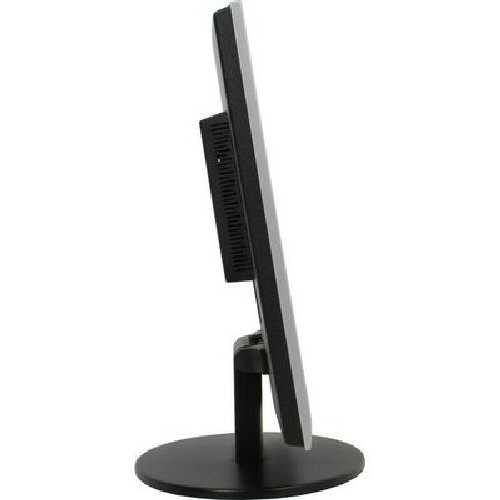

Tilt 20° ~ -5°
Operating/Storage Temperature 5-35/-20-55°C, Humidity: 20-80/20-85%
Wallmountable VESA 75 x 75 mm
Certifications & Standards CE, TUV/GS, FCC, UL, TCO 03, ISO 13406-2

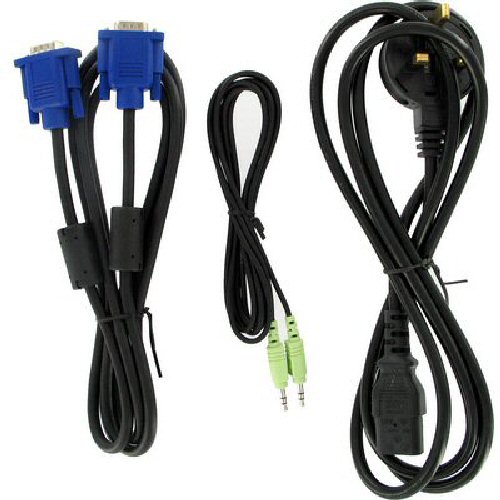

Supplied Accessories 12 languages manual CD-Rom, quick guide,
power cable, VGA cable, audio cable
Pixel Criteria bright <= 3, dark <= 3, total <= 7
Service 3 years on-site
