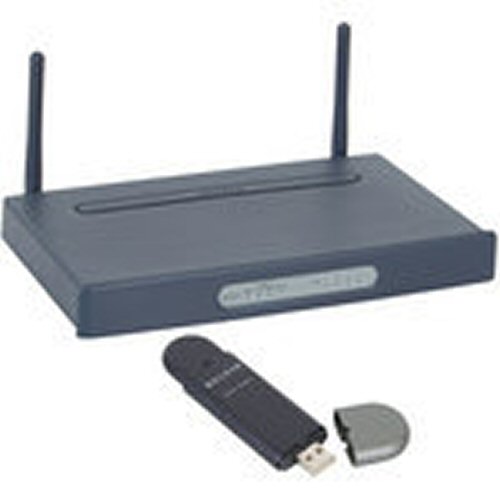

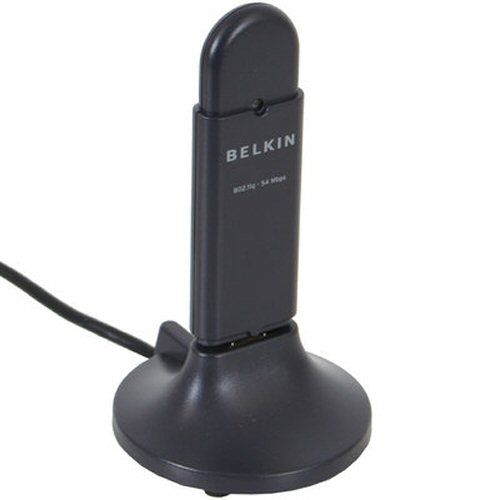

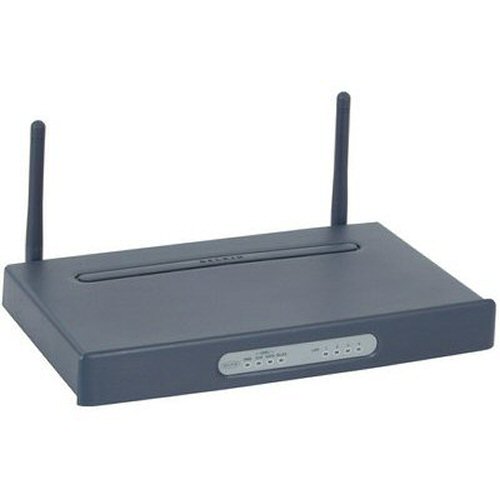

Belkin networking offers this one-box solution that lets you share your ADSL Internet connection, files, and peripherals, without cables. It combines two essential networking functions in one innovative product—an ADSL Modem with a 4-port Wireless Router plus a Free Wireless USB Adaptor. Operating at wireless speeds up to 54Mbps, the ADSL Modem with Built- In Wireless Router operates on the 802.11g wireless Ethernet standard. This standard is backward-compatible, so you can use it in combination with existing 802.11b Wi-Fi networks. Your Modem-Router also features an integrated 4-port 10/100Base-Tx Ethernet switch so you can connect your wired computers easily. Belkin makes sharing files and peripherals, such as hard drives, printers, CD-ROMs, and DVDs, easier than ever. Advantages : • Allows you to connect to ADSL Internet access and share your high-speed connection, data files, and network peripherals without wires • Protects your network from outside intrusions by hackers using NAT and SPI firewalls • Transfers data at speeds up to 54Mbps, using the 802.11g wireless standard • Offers backward-compatibility with all 802.11b 2.4GHz wireless devices
Â
Router Specifications
IP Sharing Method
NAT (Network Address Translation)
Firewall
NAT, SPI
Clients Supported
253 Total
Wireless Clients Supported
64 Total
DHCP Server
Supported, User Defeatable
User Interface
HTTP/Through Web Browser
RJ11 Port
1 WAN (For connection to DSL modem)

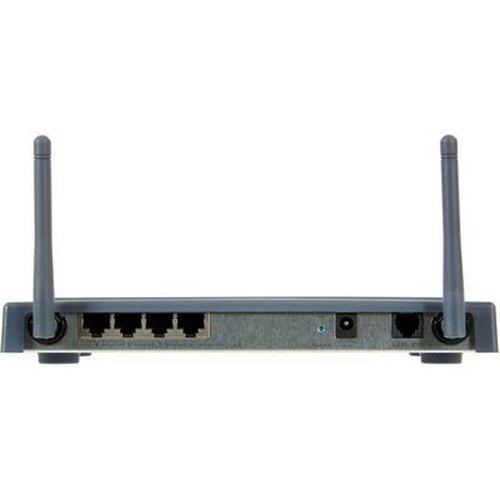

RJ45 Ports
4 LAN (For connection to local clients) auto-uplinking
Wired Network Standards
WAN: 802.3 10Base-T
LAN: 802.3u 100Base-T
Protocols Supported
TCP/IP, UDP, CSMA/DCD, DHCP, AppleTalk®
ISP Protocols Supported
Static, Dynamic, PPPoE, PPPoA, Multiple Protocol over ATM
Power Consumption
12V/1A
Radio Specifications
Wireless Standard
802.11g
Wireless Chipset
ST and CNXT
Radio technology
Direct Sequence Spread Spectrum (DSSS)
Encryption
64- or 128-bit WEP (Wired Equivalent Privacy), WPA (WiFi Protected Access) Data Encryption with TKIP and AES
Media Access Protocol
CSMA/CA (Collision Avoidance) with ACK
Frequency Band
ISM Band, 2400-2483.5MHz
Antenna Type
Dual dipole antenna
Output Power
 +13dBm-20dBm (50mW) (max.)
Modulation Type
QPSK, BPSK, CCK
RF Channels
1-11 Channels ( USA, Canada), 1-13 (UK)
Data Rates Supported
1, 2, 5.5, 6, 9, 11, 12, 24, 36, 48 & 54 Mbps
LED Indicators
8 LEDs
Power, SYN, Data, WAN, LAN (1,2,34)
Operating System Support
Windows® 95, 98, 98SE, Me, 2000, NT, XP, Linux, Mac OS®
Package Contents
DSL Filter
802.11g Wireless ADSL Modem Router
Power Supply
User Manual
Quick Installation Guide
RJ45 Networking Cable
RJ11 Networking Cable
Wireless USB Adaptor
